HIGH QUALITY HARDWARE, DUAL MODE LINK, WORRY -FREE AFTER -SALES

Aviation technology is as solid as a rock: Hardware shell adopts aviation alloy laser engraving process, anti-fall, even if the car pressure can be easily dealt with.
Dual mode communication convenience – speed: Wireless Bluetooth and high-speed USB-typc C dual-mode communication, balancing convenience and speed.
Two year warranty and worry free after-sales service: Two years of extended warranty period ensures worry free use of the product.

POWERFUL SOFTWARE PRECISE DIAG, DATA COMPATIBILITY

Wide coverage,not just Chinese brands: Models: Light trucks, heavy trucks, buses, agricultural machinery, construction machinery and cover over 98% of Chinese vehicle models.ECU: Bosch, Denso, Cummins, Delphi, Continental, Trw,Ectek …Engine: Cummins, Perkins, Caterpillar, Weichai, Yuchai, Faw, Yunnei, Doosan, Isuzu, Komatsu, Yanmar, Deutz, YTO, Econtrols, WoodWard, Mercury, Quanchai, SDEC, Greatwall, Changchai, DCD, Sida, XinChai …
Powerful and Stable ECU re-programming function: Covering most ECU Flash(FAW/CNHTC/SINOTRUK/SITRAK/DongFeng/Foton/CAMC/SHACMAN/SFH/JMC/JAC/XCMG/SANY/CHENGLONG) Note: Engine Dance X5 Supports reading and writing of over 300 ECU models of Chinese commercial vehicles, covering almost all electronic control systems of commercial vehicles in China, not listed one by one.Gas ﬂash, Woodward OH6, OH2.0, Bosch EGC4 ﬂash;
Post processing DCU ﬂash

Transmission module ﬂash, retarder ﬂash

Stable ﬂashing, simple operation, using dual veriﬁcation technology, stable ﬂashing and extremely low probability of ﬂashing death; Easy to operate and get started with

VCU/CBCU/BCM/Instrument writing (FAW, CNHTC, DF, Foton
Advanced features, professional and comprehensive: DPF regeneration with comprehensive coverageCalibration
SCR detection

NOX Sensor detection

VECU maximum speed adjustment calibration

Urea injection temperature setting

CAN Bus, Instrument drive.

Read OBD pin voltage
Remote assistance and timely service:Remote assistance, one click start, the distance between you and engineers and teachers is only one button. Engineers or teachers can remotely help you Flash Diag and calibration, which is simple and eﬃcient. You no longer have to worry about not being able to operate the computer or ﬂash.
One click software upgrade:Software update, one click software update, without complex operations, only one click, the software automatically updates to the latest version.
International vehicle brand diagnosis and re-programming: Diagnosis: Volvo, Man, Scania, Mercedes-Benz, Daf, Hino, Fuso, Iveco, UD, Caterpillar, Hyundai, Kia, Doosan, Isuzu, Toyota, Ford, Jeep, Land Rover, VW …Programming ECU:
ScaniaScania EMS/EDC S6 250Kbps (MPC555/556) Scania EMS S6 500Kbps (MPC555/556)Scania EMS S8 250Kbps (MPC5566) Scania EMS S8/EMD1 500Kbps (MPC5566)Scania EMS S8/EMD1 250Kbps (MPC5566) –Bam Scania EMS S8/EMD1 500Kbps (MPC5566) –Bam
Reading, writing, checksum correction.
MANMAN Bosch EDC7C32 [0281020067]-OBD/Bench MAN Bosch EDC17CV42 [0281020273, TC1797]- BenchMAN Bosch MD1CE100 TC299- BenchReading, writing, checksum correction.
Denso SH725XX/1N83M/ SH705X Bench1N83M FLASH Reading, writing, checksum correction 1N83M EEPROM Reading, writingSH72543 FLASH Reading, writing, checksum correction SH72543 EEPROM Reading, writingSH7055 FLASH Reading, writing, checksum correction SH7055 EEPROM Reading, writing
SH7058 FLASH Reading, writing, checksum correction SH7058 EEPROM Reading, writing

SH7059 FLASH Reading, writing, checksum correction SH7059 EEPROM Reading, writing
Toyota/Lexus Gen 3R7F701202/R7F701216 P5-UDSLC300/LX500d 3.3TD P5-UDS (F33A-FTV/R7F701216)LC300/LX500d 3.3TD MCU #2 P5-UDS (F33A-FTV/R7F701216)
LC150/Hiace/Hilux/Revo/Fortuner 2.4TD, 2.8TD P5-UDS (1GD-FTV/2GD-FTV/R7F701216) LC150/Hiace/Hilux/Revo/Fortuner 2.4TD, 2.8TD 6AT Gearbox P5-UDS (AC60F/R7F701201) Camry/ES/Rav4/UX 2.0L, 2.5L P5-UDS (M20A-FKS/A25A-FKS/R7F701202)

Camry/ES/Rav4 2.5L 8AT Gearbox P5-UDS (UB80/R7F701201)

Camry/ES/Rav4 2.5L HV P5-UDS (A25A-FXS/R7F701202) [Test]

Corolla 2.0L P5-UDS (M20A-FKS/R7F701202) [Test]

Highlander/Siena 2.5L HV P5-UDS (A25A-FXS/R7F701216) [Test]

Yaris GR 1.6T P5-UDS (G16E-GTS/R7F701216) [Test] [RD/WR/CK]

Reading, writing, checksum correction
Trucks Delphi ETC3Reading and writing via OBD2 connector via CAN-bus of Delphi ETC3 ECUs used inDAF, Kenworth, Peterbilt, Hyundai trucks.DAF/Industrial Delphi ETC3
Delphi ETC3 REV A/B/C ECUs based on MCU NXP MPC5566 with internal ﬂash memory 3 Mb. Reading of map area and writing with checksum correction via CANbus via OBD2 or on the BENCH. REV 0 and REV H ECUs are not supported.

Hyundai Delphi ETC3

Delphi ETC3 ECUs based on MCU NXP MPC5566 with internal ﬂash memory 3 Mb.

Reading of map area and writing with checksum correction via CANbus via OBD2 or on the BENCH.
Trucks Delphi DMCI CANModule for reading and writing by CAN-bus Delphi DMCI ECUs used in DAF and Hyundai trucks. ECU is based on MCU Motorola MPC561 with internal ﬂash memory 2.0Mb.Allows to read and write calibration area through CAN-bus with checksumm correction on writing. DAF/Kenwroth Delphi DMCIHyundai Delphi DMCI
IVECO Light truckIVECO EDC17C69 Bench IVECO EDC17C49 BenchIVECO MD1CS069[Support Bench lock Ecu] IVECO MD1CS089 BenchIVECO DCU17PC42/PC43 Bench
Isuzu/TranstronISUZU 4HK1/6HK1/4JJ1:SH7058 ISUZU 6HK1XDIAG/4JJ1XDIAG M4S/L4S:SH72533ISUZU 6HK1/6WG1 M5.3/M5.2:SH72544/SH72546 ISUZU-4HK1/6HK1/4JJ1 L5.2/L5.3/L5.4:SH72544/SH72546
Kia/HyundaiModern/Kia heavy-duty truck engine Delphi-ECU: DMCl (chip: MPC561)D6CF Delphi ETC3 Series MPC5566-OBDKia/Hyundai Keﬁco/Denso 2.5L CRDI (SH72546) MB275700-58xx-OBD
Kia/Hyundai Euro 6 (Denso SH72543)-Bench

Kia/Hyundai DCM3.7AP

Reading, writing, checksum correction.
BOSCH MD1 BootloaderMD1CE100 AURIX SAK-TC299TP MD1CE108 ST-SPC5898MD1CS089 SAK-TC299TP MD1CS069 SAK-TC299TPMD1CC878/868 ST-SPC58XX
Reading, writing, checksum corrections
Volvo TruckVolvo/Renault/Construction Machinery EMS2.0(MPC56X)-OBD Volvo/Renault/UD/MACK truck EMS2.2(MPC5554)-BamVolvo/Renault/UD/MACK truck EMS2.2(MPC5554)- Bench Volvo/Renault/UD/MACK truck EMS2.3(MPC5674F)- BenchVolvo/Renault/UD/MACK truck EMS2.4(MPC5777C)- Bench
Reading, writing, checksum correction.
Ford Transit /Ranger, Land Rover DefenderLand Rover Defender SID208- Bench/ Bam Ford Ranger SID209-OPENFord Transit SID208 OBD/Bench / Bam Ford Transit SID209 OBD/OpenSID604 OBD writing, checksum
Reading, writing, checksum correction.
Toyota/Lexus/Scion/Hino Gen 276F0196/198/199/219 P5-CAN-bus 76F0199 GearBox P5-CAN-busReading, writing, checksum correction.
DELPHIYuchai DCM3.2/DCM6.2AP/DCM6.24Yuchai DCM7.1AP/ DCM7.24Dongfeng M9T DCM7.1AP
Great Wall/Haval DCM6.2AP

HYCET Great Wall/ZhongXin/Changan Kaicene DCM7.1AP

Great Wall/Haval DCM3.7AP

Kia/Hyundai DCM3.7AP(SH725xx)

DOOSAN/Bobcat/Kioti/McCormick DCM3.7AP

SsangYong 2.0L XDI DCM3.7AP

DOOSAN/Bobcat/Kioti/McCormick (DCM3.7AP)

GM/Opel/Chevrolet 2.0L, 2.2L CDTI (DCM3.7AP)

JAC DCM6.2AP

Qingling/Isuzu DCM6.2AP

Qingling/Isuzu DCM7.1AP

Yunnei DCM6.24

Yunnei DCM7.24

Changan DCM7.1AP

OBD Reading, writing, checksum correction.

DCM7.1AP/ DCM7.24 BENCH Reading, writing, checksum

DCM 6.2AP open model SPC56X
BOSCH EDCDCU17CV51 TC1724 Bench (SAIC/JBC)DCU17HD01/DCU2.2 TC1766 (Hino, Cummins, Hyundai, CAT, CASE, Isuzu)VD1CC001 Euro 6(Chip: SPC574X, Hino. ISUZU Euro 6 models)
DCU17PC42/PC43 Bench (IVECO, FOTON, HYUNDAI)

EDC17CV44/54 OBD/Bench/Open

EDC17C81 OBD/Bench/Open[Support Bench lock Ecu]

EDC17C53 OBD/Bench/Open[Support Bench lock Ecu]

EDC17C55/C63/C04 OBD/Bench/Open[Support Bench lock Ecu]

EDC17CV41 OBD/Bench/Open(WeiChai, Iveco,Doosan,CASE,New Holland, CLAAS)

EDC17CV42 Bench MAN

EDC7UC31 MPC561/562 OBD/Bench

EDC7C1(lveco, Doosan, etc,series chip:MPC555)

EDC7C4, EDC17CP15/CP52 Chip:MPC555 OBD

EDC16UC40 MPC561/562 OBD/Bench

EDC16C39 MPC561/562 OBD/Bench

EDC17CP52 TC1797 Bench(Ivevo,Fuso)

EDC17C69 TC1793 Bench IVECO

EDC17C49 TC1797 Bench IVECO

EGC4 TC1797 BGA Bench

EDC17C83 TC1793 Bench ISUZU

MEG17.9.1X, Chip:TC176211766/179211796 (Bench Mode)

MEG17.9.2X, Chip:TC17241172817671178211784/1797 (Bench Mode)
OthersContinental FAW 52E/91E SPC563X OBD/Open/checksumContinental Weichai WISE15/15C SPC564X OBD/Open/checksumContinental FAW 32F/36F OBD /checksum
Econtrols LNG/CNG 3G/4G OBD Model

Woodward LNG/CNG OBD Model/Recover

ZF Transmission OBD writing/checksum

ZF Retarder OBD writing

WABCO ECAS Reading, writing

WABCO ABS/EBS Reading, writing

Knorr ECAS Reading, writing

Knorr ABS/EBS Reading, writing

VCU/CBCU/BCM/Instrument writing (FAW, CNHTC, DF, Foton,)

Covering most ECU Flash

(FAW/CNHTC/SINOTRUK/SITRAK/DongFeng/

Foton/CAMC/SHACMAN/SFH/JMC/JAC/XCMG/

SANY/CHENGLONG)

【X5Box】

Volvo/UD/MACK SeriesVolvo/Renault/UD/MACK series MODE+ECU Flash+Checksum+Recover file corruptVolvo/Renault/Construction Machinery Engine EMS2.0 (Euro 2/3-chip: MPC56X) 【 OBD Mode 】 Volvo/Renault/UD/MACK truck engine EMS2.2 (Chip: MPC5554) 【 BAM Mode 】Volvo/Renault/UD/MACK truck engine EMS2.2 (Chip: MPC5554)【 BENCH Mode 】
Volvo/Renault/UD/MACK truck engine EMS2.3 (Chip: MPC5674F)【 BENCH Mode 】

Volvo/Renault/UD/MACK truck engine EMS2.4 (Chip: MPC5777C)【 BENCH Mode 】
SCANIA SeriesScania S6/S8/EMD1 engine series MODE+ECU Flash+ Checksum+Recover file corruptScania S6 engine [Chip: MPC555/MPC556] – OBD ModeScania S8/EMD1 Engine [Chip: MPC5566] – OBD Mode
Scania S8/EMD1 Engine [Chip: MPC5566] – BAM Mode
HYUNDAI SeriesD6CF Delphi ETC3 Series OBD MODE ECU Flash[HINO/HYUNDAI] DCU17HD [TC1766] Bench read/write/checksumDenso2-plug[Chip:SH72546 MB275700-57XX] CRDI-E6 2.5
Denso Series[HINO] Denso 3-plug [Chip:SH72543/1N83M][SDEC] Denso 3-plug [Chip:SH72543/1N83M][Mitsubishi Fuso] Denso 3-plug [Chip:SH72543/1N83M]
[HYUNDAI/Kia] Denso3-plug [Chip:SH72543/1N83M]

[HYUNDAl/Kia] Denso2-plug[Chip:SH72546 MB275700-57XX] CRDI-E6 2.5

[Denso 2-plug] [93C86 SH7058] Bench

[Denso 5-plug] [93C86 SH7055/7058] Bench

[SDEC/JCB…] DCU Bench read/write/checksum

[HINO/HYUNDAI] DCU17HD [TC1766] Bench

[Fuso]SANY…Construction Machinery D04/D06 Engine Bench mode

[Fuso] KATO…Construction Machinery EDC7C4, EDC17CP15/CP52 Chip:MPC555 OBD mode
MAN SeriesMAN (TGA/TGL/TGM/TGS/TGX) engine EMS (OBD/BEACH ECU Flash)EDC7C32 MODE+ECU Flash+Checksum EDC17CV42 MODE+ECU Flash+ChecksumMD1 Series MODE+ECU Flash+Checksum
DAF/KenwrothDelphi-ECU:DMCI read/write/checksumDelphi-ECU:ETC3/ETC4 read/write/checksum
Continental SeriesContinental SID604 ECU Flash/ChecksumSID208/209 Data ChecksumFord SID209OBD Encryption ECU MODE Flash Ford SID209 Open Mode Recover file corrupt
Ford SID208 Open Mode Recover file corrupt

Ford SID208 Bench MODE
IVECO SeriesIVECO EDC17C69 Bench MODE/ECU FlashIVECO EDC17C49 MODE/ECU FlashIVECO MD1CS069 MODE/ECU Flash【Support encryption ECU】
IVECO MD1CS089 Bench MODE/ECU Flash IVECO handle DCU17PC43/PC42 MODE/ECU Flash 【Equipment IVECO,foton,HYUNDAI】
ISUZU/Transtron SeriesISUZU-4HK1/6HK1/4JJ1/6WG1E5NC[Transtron-SH7058]ISUZU Construction Machinery [Old]-6WG1XDHAG/4JJ1XDHAG [Transtron-SH7059]ISUZU Construction Machinery [Old]-6HK1XDIAG/4JJ1XDIAG [Model M4S/L4S: SH72533]
ISUZU Construction Machinery [New]-GIGA-6HK1/6WG1 [Model M5.3/M5.2: SH72544/SH72546]

ISUZU-4HK1/4J1 [Model L5.2/L5.3/L5.4/L5.5-SH72544/SH72546]

ISUZU-RZ4E 12V EDC17C83

Engine Dance

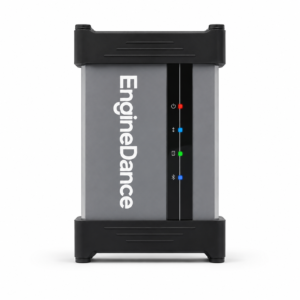

Engine Dance X5 Diag

x5

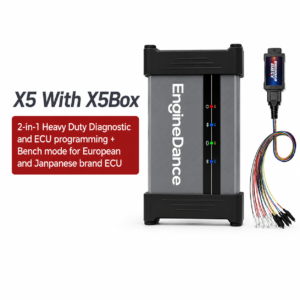

X5 With X5Box
